Residential Cable Guided Outdoor Blinds

Cooler, Fewer Bugs, Rain Ready

We reply within 1 business day.

Key facts

  • 316 marine-grade stainless steel side cables and fasteners
  • PVC-coated polyester or fiberglass mesh at 1, 3 or 5 percent openness; fire-retardant, UV-stabilized, 16 colors
  • Manual chain, motorized with remote, or motorized with WiFi smart-home control
  • Widths to 4 m on the 50 mm tube, to 6 m on the 65 or 80 mm tube; drops to 3 m typical
  • Blocks about 80 percent of rain in a normal monsoon; engineered for 25 to 40 km/h sustained wind with the heavy-duty bottom bar when correctly installed

See full specifications

Two stainless steel cables hold the fabric tracking straight. Up to 80% of rainfall stays out.

Sun bleaches the furniture. Monsoon rain drives across the floor. The family stops opening the sliding door. Cable-guided shading gives the space back. Not by sealing it. By holding an outdoor mesh steady against wind and rerouting most of the rain.

Three choices on your end: openness, color, control. We recommend 1 to 3% openness for most Malaysian balconies. 16+ fabric colors. Cord loop under 3 m, motor above.

Photo 1 of 140Hover to zoom

Installer and customer photosSee all 139 photos in 6 settings

Trusted, Loved And Installed By

Built for monsoon, retracted before the storm.

Cable-guided outdoor blinds keep the fabric tracking straight in sustained winds of 25 to 40 km/h, with gusts above 60 km/h. They block up to 80% of rainfall in a tropical storm. Above 80 km/h winds, retract them. Below that, normal monsoon weather is what they're built for.

02 Built for monsoon, retracted before the storm

Built for monsoon, retracted before the storm.

Cable-guided outdoor blinds keep the fabric tracking straight in sustained winds of 25 to 40 km/h, with gusts above 60 km/h. They block up to 80% of rainfall in a tropical storm. Above 80 km/h winds, retract them. Below that, normal monsoon weather is what they're built for.

When the monsoon hits, cable-guided shading holds the fabric flat against your opening. Up to 80% of incoming rainfall stays out.

The weighted aluminum bottom bar keeps the fabric taut. Water reroutes off the edge instead of pooling at your slider.

For most Klang Valley balconies, that’s the difference between a wet evening indoors and dinner outside while it rains.

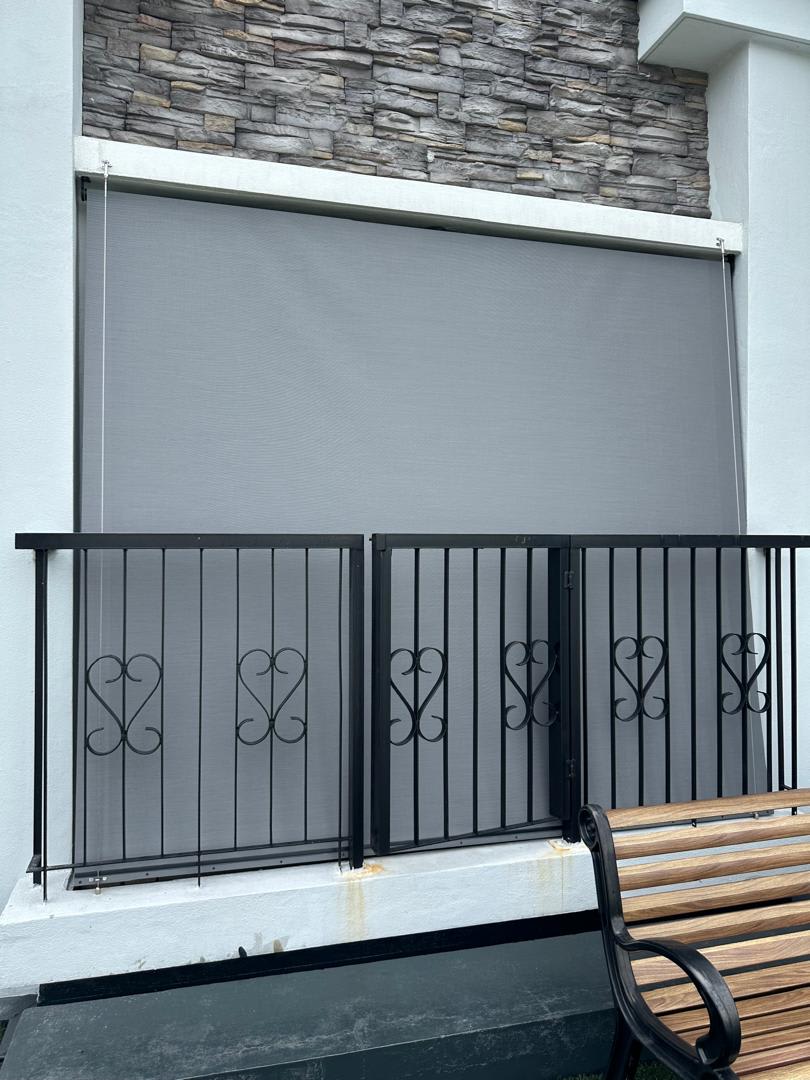

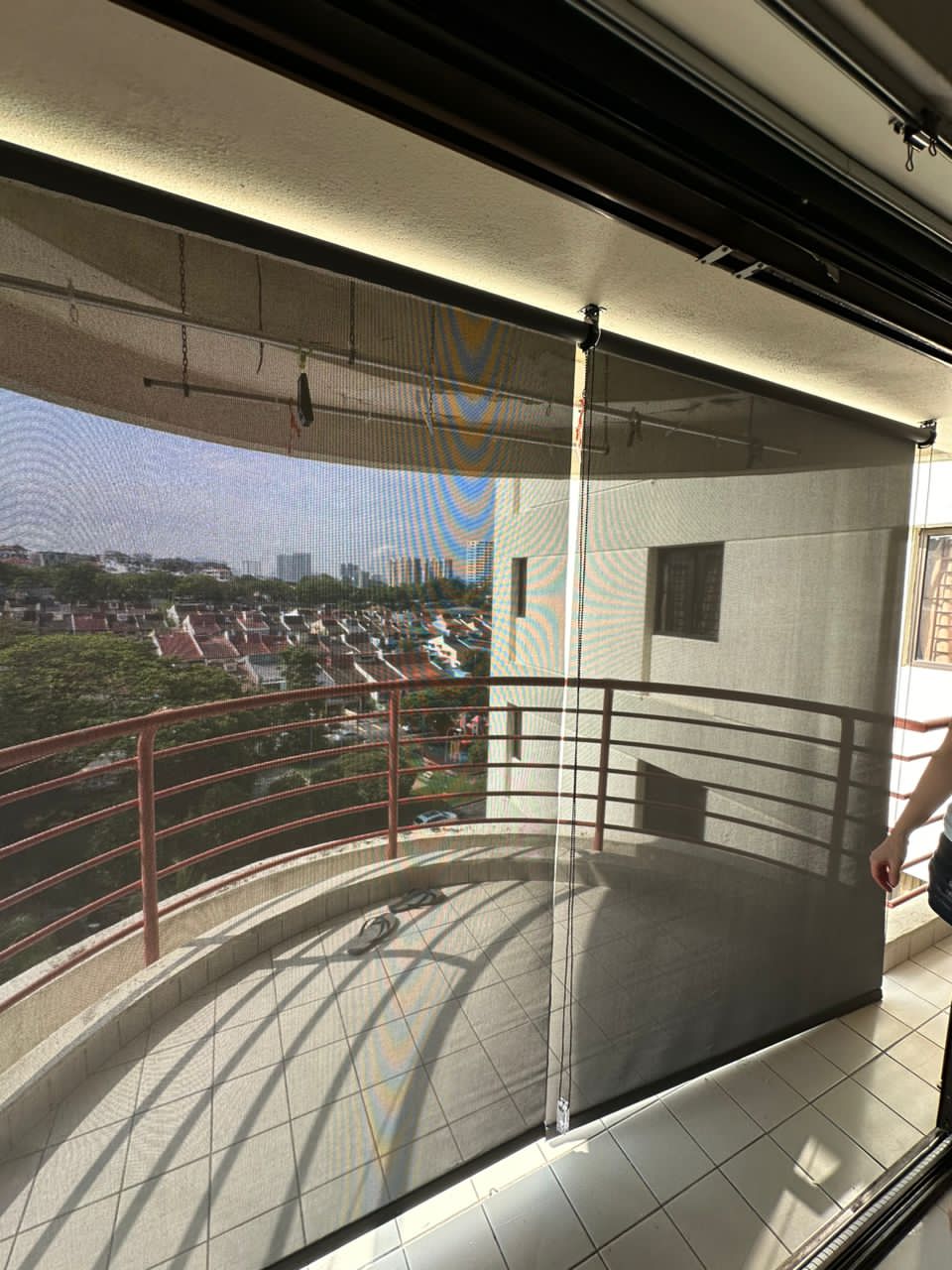

Two 316 marine-grade stainless steel cables run full-height down each side of the blind. Nylon coated, one each side.

They hold the fabric tracking straight. No sway. No lateral flap.

We have installed cable-guided up to level 35. Level 20 and above, always motorized.

Take a Klang Valley balcony with afternoon sun and a SW-facing slider. Cable-guided shading typically gives back 6 to 8 months of usable hours.

Hours previously lost to glare, heat, or rain.

The exact number depends on orientation, height, and openness. We confirm on site.

One less sweep, every day

A cable-guided blind drawn down is a physical screen. Mosquitoes, neighbor's leaves, and Klang Valley haze stay on the outside of the cable line. We've heard the same line from owners more than once: one less sweep per day. That works out to about 365 fewer sweeps a year.

06 One less sweep, every day

One less sweep, every day

A cable-guided blind drawn down is a physical screen. Mosquitoes, neighbor's leaves, and Klang Valley haze stay on the outside of the cable line. We've heard the same line from owners more than once: one less sweep per day. That works out to about 365 fewer sweeps a year.

The fabric mesh acts as an insect screen when drawn. Mosquitoes and dust stay outside. Wind-blown leaves accumulate at the cables, not on your floor.

The guide cables and visible hardware are 316 marine-grade stainless steel. Same alloy as coastal yacht fittings.

304 stainless looks identical at the showroom. It pits within 18 to 36 months in coastal humidity.

We use 316 because we have replaced too many 304 systems. For buyers who didn’t know to ask.

Mild soap, water, soft cloth. No harsh chemicals, no abrasive pads. Coastal sites need a wipe-down every two to three weeks to clear salt spray. Inland, monthly is enough.

A 10 to 15 degree drop where you sit

Cable-guided shading typically drops the temperature under the canopy by 10 to 15 degrees C compared to direct sun. The fabric filters UVA and UVB. Furniture, cushions, and timber decking fade slower. Your dog stops moving inside at 2pm.

10 A 10 to 15 degree drop where you sit

A 10 to 15 degree drop where you sit

Cable-guided shading typically drops the temperature under the canopy by 10 to 15 degrees C compared to direct sun. The fabric filters UVA and UVB. Furniture, cushions, and timber decking fade slower. Your dog stops moving inside at 2pm.

West-facing KL balcony, noon, unshaded. Surface temperature 38 to 42 degrees C.

Add cable-guided shading at 3% openness. The same surface sits at 28 to 32 degrees C.

We confirm the exact numbers per site during measurement.

The PVC-coated mesh filters UVA and UVB. UV-driven fading on indoor furniture near the balcony slows noticeably. Specific UV-block percentages depend on fabric openness and weave, which we list in the fabric spec sheet on quotation.

At 1 to 3% openness, you can read a tablet on the balcony without glare and still see the skyline through the fabric. At 5% and above, view-through improves and glare returns. We match openness to your sun direction and what you do on the balcony.

The shading runs at the balcony edge, so the heat soak through your sliding door drops too. Indoor air-conditioning on the floor behind the balcony works less hard. We have not measured the kWh saving on residential installs. If you want a measured number, that is a Renson Fixscreen tier conversation, not cable-guided.

Privacy when the neighbor is on the balcony, view when she isn't

Drop the blind to about three-quarter height when you want privacy and still want airflow. Full down when you need both privacy and a rain block. The cable-guided system holds at any height you set it, the bottom bar keeps the fabric taut.

15 Privacy when the neighbor is on her balcony, view when she isn't

Privacy when the neighbor is on the balcony, view when she isn't

Drop the blind to about three-quarter height when you want privacy and still want airflow. Full down when you need both privacy and a rain block. The cable-guided system holds at any height you set it, the bottom bar keeps the fabric taut.

A 1% openness fabric blocks roughly 99% of sightlines from outside. You keep a view of the skyline from inside.

The eye reads from light to dark, not dark to light. That asymmetry is what makes it work.

For balcony BBQ corners, choose a denser-weave fabric with higher flame resistance and keep the bottom bar 1 m clear of the heat source. We confirm spacing during the site survey.

Because the cables hold the fabric tracking straight, the blind doesn’t drift sideways or jam against one rail. After three years, you’re still pulling it down to the same line. That’s the entire reason the cables are there.

Built around your opening, not the other way around

Cable-guided systems take custom widths up to 6 m per blind. Tube diameter is sized to the span. Wider openings combine two or three blinds side by side. The system also handles openings up to 20 degrees off vertical. Pitched balcony covers, angled pergola sides, that range.

19 Built around your opening, not the other way around

Built around your opening, not the other way around

Cable-guided systems take custom widths up to 6 m per blind. Tube diameter is sized to the span. Wider openings combine two or three blinds side by side. The system also handles openings up to 20 degrees off vertical. Pitched balcony covers, angled pergola sides, that range.

16+ fabric colors in PVC-coated polyester at a 30/70 PVC-to-polyester blend, plus optional fiberglass meshes for premium dimensional stability. The headrail comes exposed (cleaner price) or cassette (cleaner look).

Single blinds run up to 6 m wide. Beyond 6 m, we combine blinds side by side with the cables aligned so the look stays clean. Tube diameter increases with span. We confirm the right tube on site, the matrix changes based on fabric weight and motor type.

Cord under 3 m, motor everywhere else

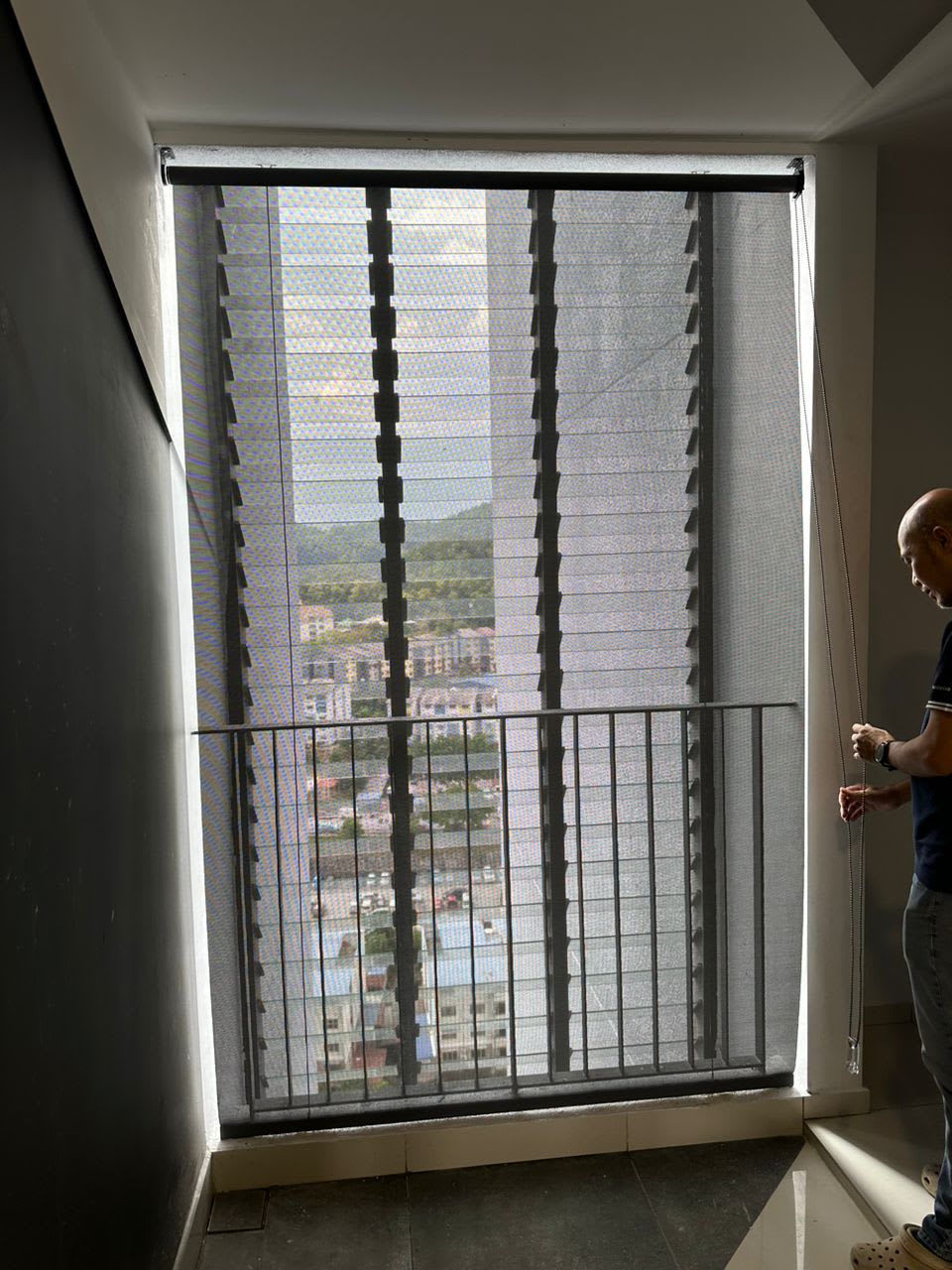

Under 3 m of width, a manual cord loop is fine. Above 3 m, the cord becomes a daily workout, so we motorize. Motors are tubular and sit inside the roller. Under 40 decibels. Rated for 10,000+ cycles. That works out to about 14 years of daily use.

22 Cord under 3 m, motor everywhere else

Cord under 3 m, motor everywhere else

Under 3 m of width, a manual cord loop is fine. Above 3 m, the cord becomes a daily workout, so we motorize. Motors are tubular and sit inside the roller. Under 40 decibels. Rated for 10,000+ cycles. That works out to about 14 years of daily use.

Cord-loop systems are best for blinds under 3 m wide. Over 3 m, the loop length and operating force start to fight you. We will not specify a manual cord on a 4 m balcony, even if you ask.

Tubular motors handle the full range, up to 6 m per blind. Remote control comes standard.

WiFi control is an add-on. So is the optional rain-and-wind sensor.

The sensor retracts the blind automatically when winds spike past 80 km/h.

The motors connect to Google Home, Amazon Alexa, and Apple HomeKit through the New Way smart hub. Set a 7am open and a 6pm close, or trigger close-all from a rain sensor. The hub is included on motorized installs, not sold separately.

Measure, fabric, motor, install. In that order.

Most cable-guided installs follow four steps: site measurement, fabric and openness, motor and control, install day. From first WhatsApp to fitted blind, expect three to six weeks. Stock and span move the timeline.

26 Measure, fabric, motor, install. In that order

Measure, fabric, motor, install. In that order.

Most cable-guided installs follow four steps: site measurement, fabric and openness, motor and control, install day. From first WhatsApp to fitted blind, expect three to six weeks. Stock and span move the timeline.

Sun direction (NE, SE, SW, NW), the floor (level matters, level 20+ usually motorized), and what you do on the balcony (read, eat, dry laundry, hang out in the evening). Those three answers narrow the fabric, openness, and motor choice.

The quote spells out three columns. What’s in the price. What’s optional. What’s extra.

  • In the price: blind, cables, fabric, install, and the smart hub on motorized
  • Optional: rain-and-wind sensor, cassette headrail, larger tube
  • Extra: any electrical work or framework not on the original site

We do not bundle extras into the headline price.

Ask for the nett price line by line if anything looks unclear.

We install most jobs. Cable-guided is forgiving enough for confident DIYers, but the cable tensioning is where amateur installs fail. If you self-install, we ship pre-cut cables and a tensioning gauge. Most buyers choose our crew.

Find a space like yours in 139 installation photos

New Way installs residential cable guided outdoor blinds in Malaysia and Singapore. The photos below come from real installations, taken by our installers and customers, grouped by where each blind was fitted.

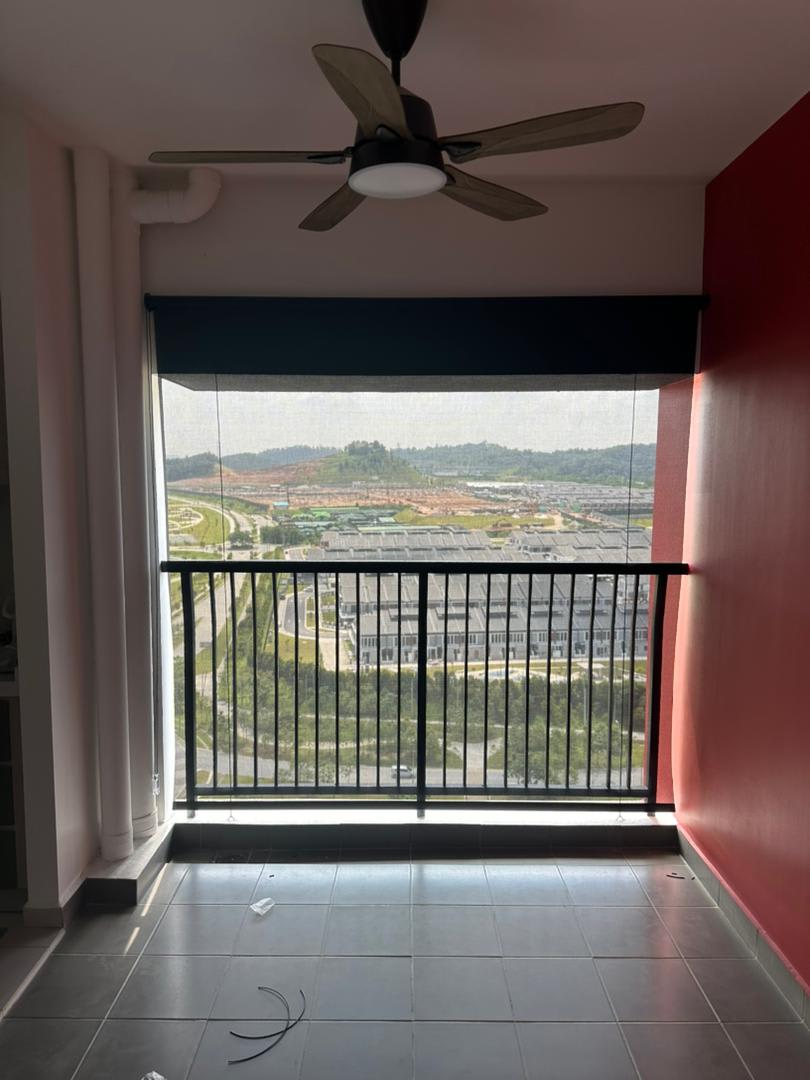

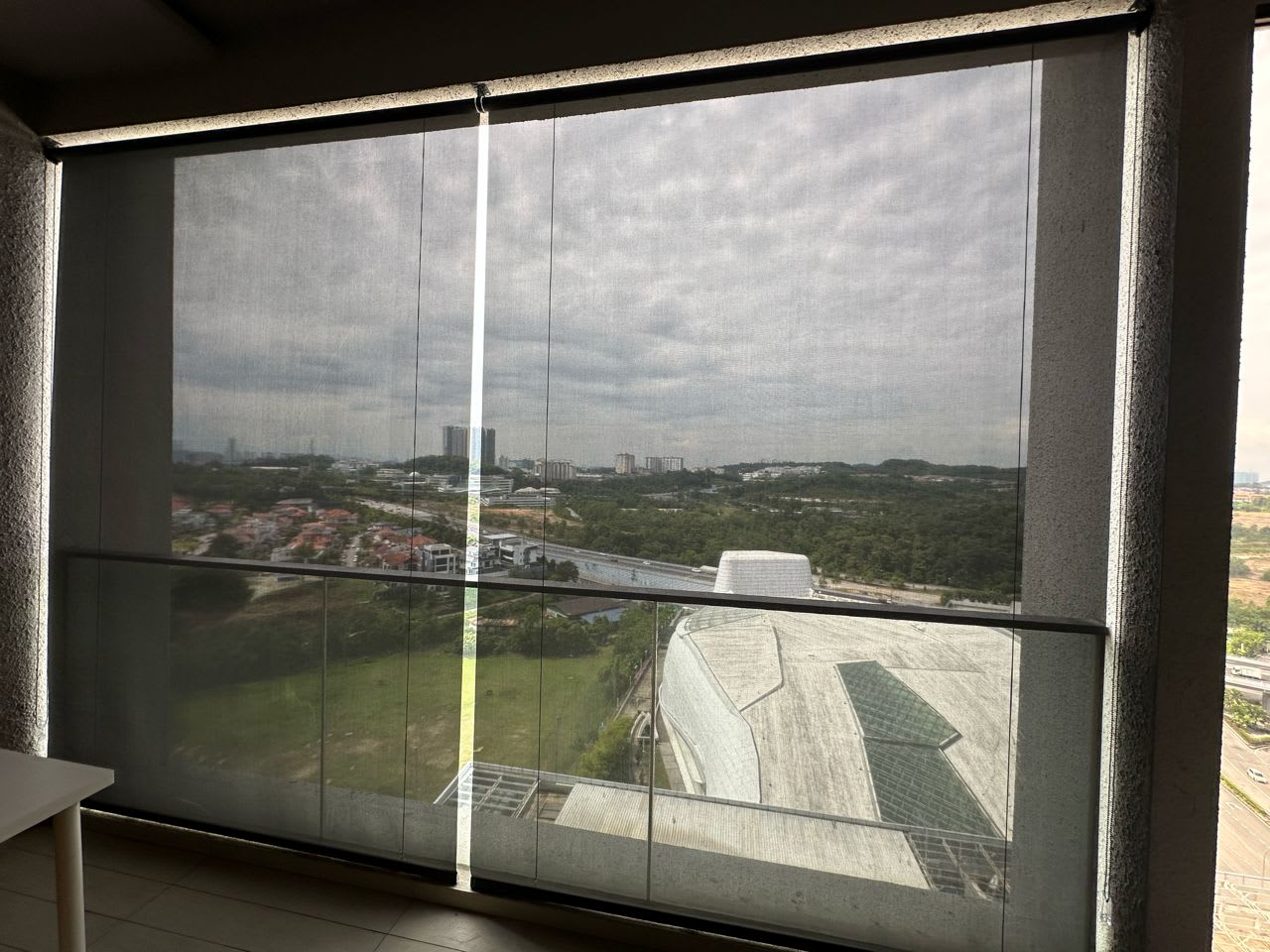

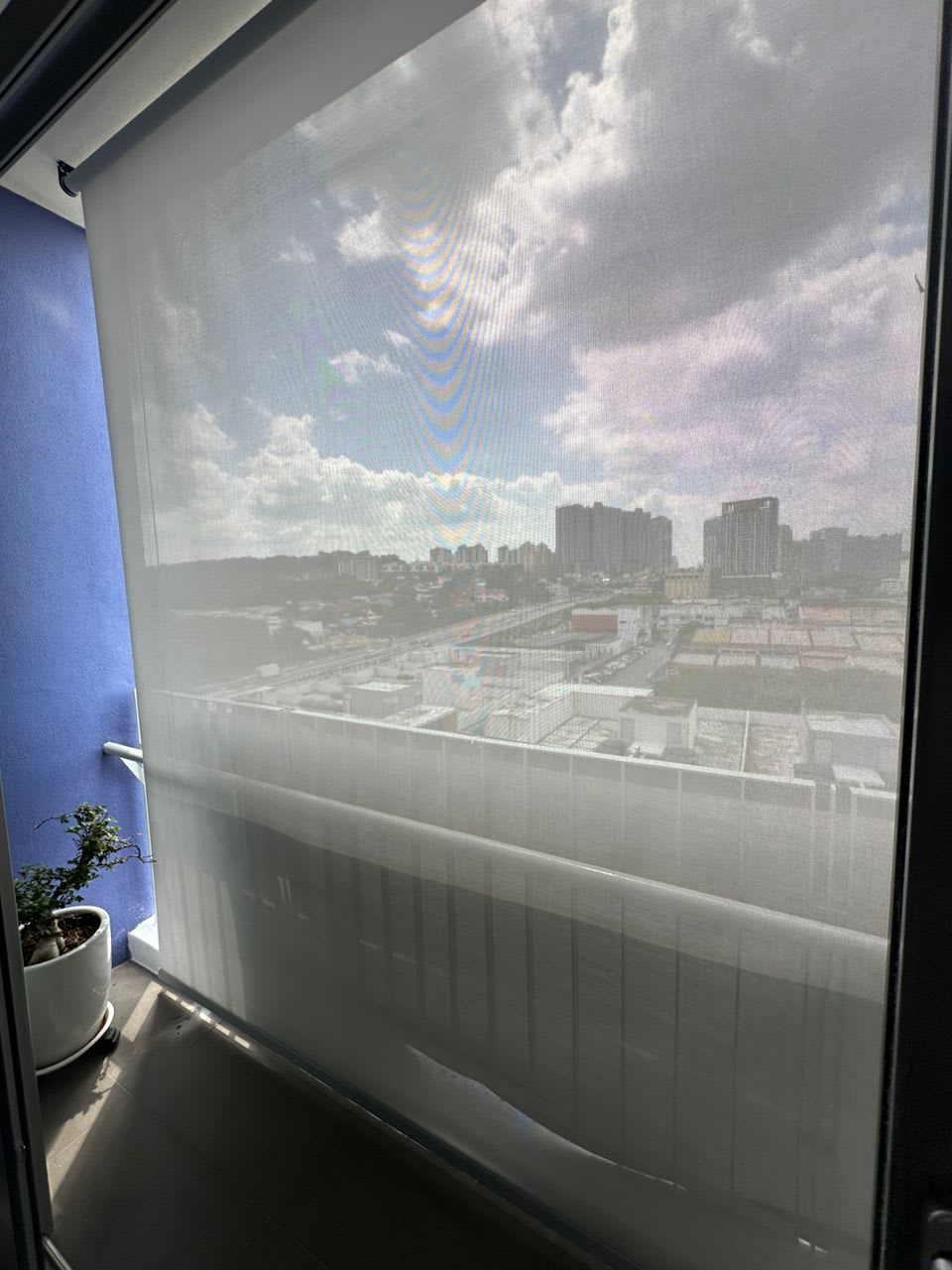

Condo balcony

On a condo balcony, cable guided outdoor blinds run along the railing line. Closed along the full run, the light gray mesh softens the sun while the towers stay visible.

  • Light gray mesh outdoor blinds closed along a long condo balcony, with high-rise towers visible through the fabric
    Closed along the full run, these mesh blinds soften the sun without losing the skyline.
  • Gray outdoor blinds closed across a slight curved apartment balcony, a laundry rack and air-conditioner visible on the floor above
    Even on a slight curved facade, these outdoor blinds sit flush from rail to rail.
  • Black outdoor blinds partly raised on a condo balcony with potted plants and a folding chair nearby
    Raise it partway and you get a breeze without losing the privacy below the rail.
  • Charcoal outdoor blinds closed on a high-rise balcony corner, tree canopy visible through the mesh
    Closed against the view, these blinds still let the breeze reach the high-rise balcony.
  • Charcoal outdoor blinds fully closed across a corner condo balcony with cloudy skyline and construction site below
    This corner balcony stays shaded and private no matter which direction the sun swings.
  • Charcoal mesh outdoor blinds partly lowered on a condo balcony with hills and a township spread out below
    The mesh weave softens the sun while these outdoor blinds keep the hillside in view.
  • Cream outdoor blinds lowered across two panels of a condo balcony corner, glass railing and greenery visible below
    Two panels seal the corner so the balcony stays cool and shielded from every angle.
  • Showing 7 of 71. The other 64 open in the viewer.

Patio, pergola or gazebo

Under a patio roof, pergola or gazebo, cable guided outdoor blinds enclose the open sides. Here charcoal mesh closes a covered deck, the hedge-lined garden still visible beyond.

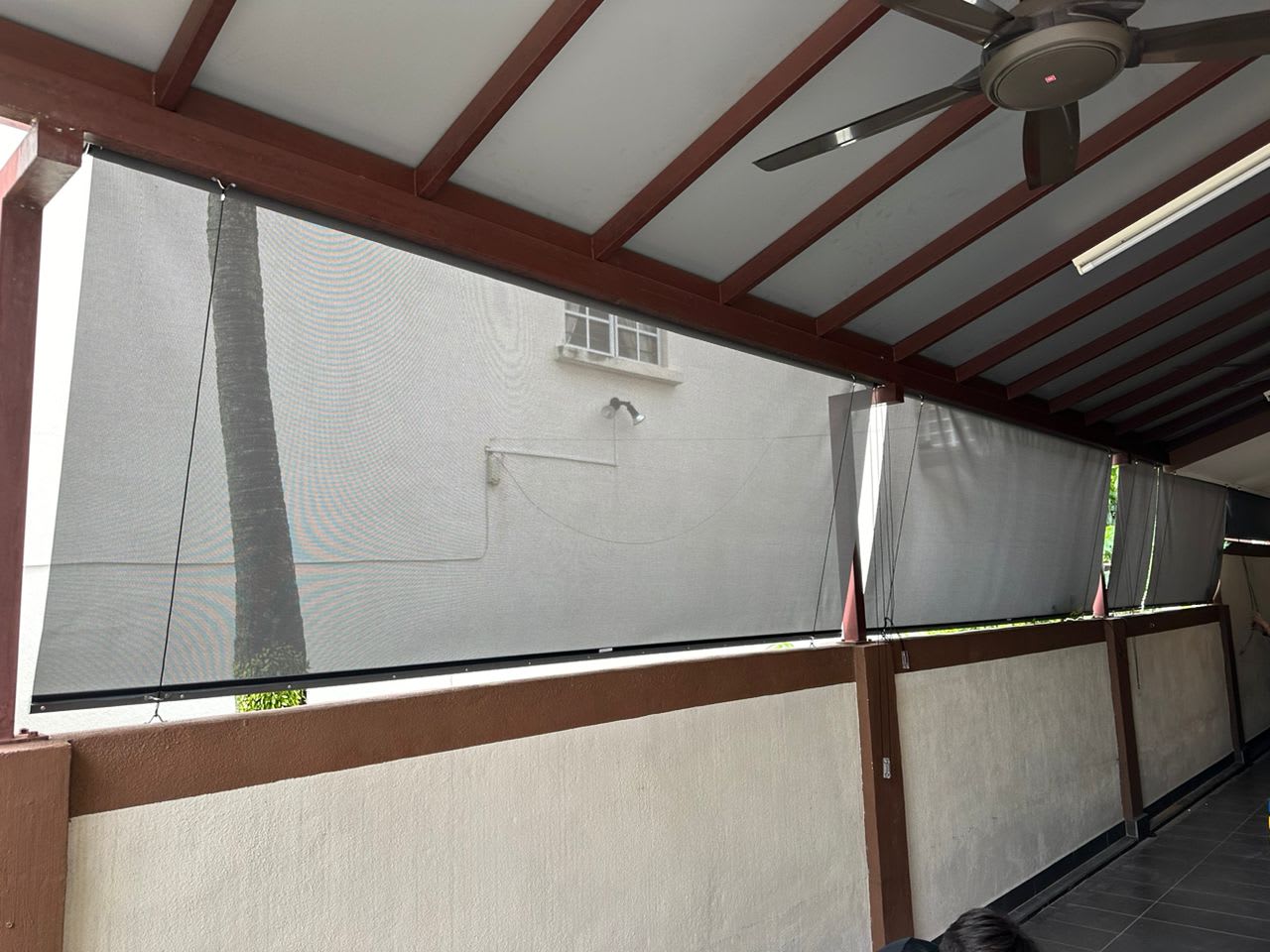

  • Charcoal mesh outdoor blinds enclosing a wood-decked pergola with ceiling fans and a hedge-lined garden beyond
    Ceiling fans and these outdoor blinds together keep the deck comfortable long after noon.
  • Gray outdoor blinds lowered mostly closed beside an outdoor kitchen counter with patterned tile backsplash
    Lowered here, it shields the outdoor kitchen from wind while cooking outside.
  • Charcoal mesh outdoor blinds rolled up along a corner patio, with landed houses visible across the street
    Tucked away, the corner patio stays fully open for airflow and views.
  • Charcoal mesh outdoor blinds rolled up along the same corner patio, viewed toward an open field and houses
    From this side, the patio stays open and breezy with the blinds tucked away.
  • Cream outdoor blinds lowered along a wood-decked pergola with a neighboring house wall visible beyond
    Down go the blinds and the deck stays shaded through the hottest part of the day.
  • White solid outdoor blinds closed across a covered patio opening beside an open door and a stacked storage area
    Closed end to end, it keeps the patio shaded and the doorway out of the sun.
  • Gray mesh outdoor blinds closed in the same gazebo, a dining table set below and red ornaments strung across the top
    With the blinds down, the gazebo stays shaded and ready for a family meal outdoors.
  • Showing 7 of 38. The other 31 open in the viewer.

Landed home balcony or facade

On a landed home, cable guided outdoor blinds fit upper-floor balconies and facade openings. Gray blinds closed on two balconies side by side keep both shaded through the afternoon.

  • Gray outdoor blinds closed on two upper-floor balconies of a landed house, air-conditioning units mounted between them
    Side by side, these outdoor blinds keep both balconies shaded through the afternoon.
  • Charcoal outdoor blinds closed across a corner balcony of a two-story landed house, seen from the street
    Two closed blinds wrap the corner balcony in shade and privacy at once.
  • Charcoal mesh outdoor blinds closed over an exterior opening in a blue wall, a neighboring house beyond
    Even on a bare wall, these outdoor blinds are ready to close off the view next door.
  • Cream outdoor blinds closed across an upper balcony of a landed house, set against an orange building facade
    Closed against the afternoon sun, the blind keeps the balcony cool and private.
  • Taupe outdoor blinds closed across an upper balcony of a landed house, seen from the street below
    Closed taupe blinds give this upper balcony privacy without blocking the breeze.
  • Gray outdoor blinds closed on two balconies of a landed house facade, wider angle showing the full upper floor
    From this angle, these outdoor blinds show just how much shade both balconies gain.
  • Light blue outdoor blinds closed on a corner balcony, high-rise towers and construction cranes visible at dusk
    At dusk, this outdoor blinds panel keeps the balcony private from the towers next door.
  • Showing 7 of 12. The other 5 open in the viewer.

Courtyard or yard

In a courtyard or yard, cable guided outdoor blinds close off the open side of the space. Here ivory blinds seal a courtyard corner, potted plants on artificial turf in front.

  • Ivory outdoor blinds fully closed in the same courtyard corner, potted plants on artificial turf in front
    Fully closed, these blinds seal the courtyard corner from wind, sun, and passersby.
  • Ivory outdoor blinds partly lowered in a courtyard corner, venetian blinds and boxes visible behind the gap
    Halfway down, these blinds start turning the courtyard corner into a private nook.
  • Solid charcoal outdoor blinds fully closed along a covered walkway beside a courtyard pond and greenery
    It closes off the walkway, turning the pond corner into a private retreat.
  • Black mesh outdoor blinds closed behind a decorative window grille, with a building visible in the courtyard beyond
    Closed behind the grille, the mesh adds shade without hiding the courtyard beyond.
  • Espresso brown outdoor blinds closed against a side wall beside a garden path of grass pavers
    Closed here, it screens the side yard for privacy without losing daylight.
  • Solid charcoal outdoor blinds fully closed across a narrow service yard opening with tile flooring below
    Closed edge to edge, this narrow opening stays private and glare-free all day.
  • Gray outdoor blinds closed across a narrow utility balcony, sunlight streaking through the fabric onto the floor
    A single gray blind keeps sun and rain off the laundry corner all day long.
  • Gray outdoor blinds partway down over a landed house porch with a ladder set up underneath during installation
    Once set, it drops evenly to shade the porch on the sunniest afternoons.

Car porch or entrance

On a car porch, cable guided outdoor blinds close the open side of the porch. Fully closed across a three-panel carport opening, guide cables at each seam, the charcoal mesh makes a private, weatherproof room.

  • Charcoal outdoor blinds fully closed across a three-panel carport opening, with guide cables visible at each seam
    Closed end to end, it turns the open carport into a private, weatherproof room.
  • Charcoal outdoor blinds closed across a carport corner on a two-story home with a driveway
    Closed blinds turn the carport corner into a shaded, private spot for the family car.
  • Cream outdoor blinds half-lowered over a carport, revealing a car and bicycles parked inside
    Lower one panel and keep the carport shaded while the rest stays open for easy access.
  • Showing 3 of 7. The other 4 open in the viewer.

Rooftop terrace

On a rooftop terrace, cable guided outdoor blinds hang along the railing line under the roof. Part lowered under a glass pergola roof, they already cut the worst of the afternoon glare.

  • Charcoal outdoor blinds part lowered along a rooftop terrace railing under a glass pergola roof, trees and rooftops beyond
    Half down, these blinds already cut the worst of the afternoon glare.
  • Charcoal outdoor blinds closed along a rooftop corner overlooking neighboring house roofs
    Closed blinds keep the rooftop corner private without blocking the breeze completely.
  • Charcoal outdoor blinds part lowered along a rooftop terrace, wooden floor and an inflatable pool toy in the foreground
    The terrace turns into family space the moment the blinds come down.

Ask about your space

Product Specifications

Guidance system

Cable guided

Water exposure rating

Water resistant

Rain reduction

Up to 80% of rainfall blocked at the fabric.

UV filtering

Filters UVA and UVB. Specific UPF rating and UV-block % on quotation per fabric. [Flag F3: verify Fabric & Materials DB before publishing UPF50+ / 98% / AATCC 183 / EN 13758-1 specifics]

Fabric openness range

0 to 10% available. Recommended 1 to 3% for most Malaysian balconies.

Fabric material

PVC-coated polyester, 30/70 PVC-to-polyester blend. Optional fiberglass meshes for premium dimensional stability.

Fabric lifespan

10 to 15 years under tropical use

Fabric colors

16+ colors. Custom printing on request.

Maximum width

Up to 6 m per blind. Wider openings combine multiple blinds side by side.

Maximum drop

Confirmed on quotation per opening height. [Flag: verify and populate from Reference Product entry before publish]

Roller tube diameter

Tube diameter sized to span (typical range 50 mm to 80 mm; heavier tubes on extra-wide spans). [Flag F4: verify exact tube SKU matrix against Reference Product entry before restoring specifics]

Manual operation

Cord loop. Recommended under 3 m of blind width.

Motor type

Tubular motor, sits inside the roller tube. 240 V AC, hardwired (rechargeable motors not used outdoors).

Motor noise

Under 40 decibels

Motor warranty

5 years

Motor cycle rating

10,000+ cycles (approximately 14 years of daily use)

Motorized control types

Wall remote (standard), WiFi via the New Way hub (add-on), optional rain-and-wind sensor

Smart home integration

Google Home, Amazon Alexa, Apple HomeKit via the New Way hub (included on motorized installs)

Hardware material

316 marine-grade stainless steel cables with nylon coating. Powder-coated aluminum extrusions. [Flag F10: verify powder-coat specification against Manufacturer Reference Materials]

Bottom bar

Weighted aluminum. Standard up to 3 m of blind width. Heavy-duty above 3.5 m.

Rear guide

Two 316 stainless steel cables with nylon coating, one each side of the blind, run vertical full-height. Cable guides and aluminum side channels cannot be combined; cable-guided uses the same side space the channels would.

Specifications

30 Outdoor blinds (residential)

Complete Technical Specifications
for Cable Guided Outdoor Blinds Solutions

Quick Answer

Cable-guided outdoor blinds use powder-coated aluminum extrusions. 316 marine-grade stainless steel cables with a nylon coating. A PVC-coated polyester mesh at a 30/70 PVC-to-polyester blend. All mounted on an aluminum roller tube with a weighted aluminum bottom bar.

Best For

Best for Malaysian and Singaporean balconies and patios where you want corrosion resistance, stable cable guidance, and a tropical-rated outdoor mesh that holds up in humid and coastal conditions.

Frame and hardware

Powder-coated aluminum extrusions and 316 stainless steel cables with nylon coating resist corrosion in humid and coastal environments. We use 316 specifically because 304 stainless looks identical at the showroom and starts pitting within 18 to 36 months in coastal humidity.

Fabric options (sun and privacy)

Multiple fabric options at a 30/70 PVC-to-polyester blend, with optional fiberglass meshes for premium dimensional stability. Openness factor from 0 to 10%; for most Malaysian balconies we recommend 1 to 3%.

Cable guidance and edge control

Two 316 marine-grade stainless steel cables run full-height on each side of the blind, holding the fabric tracking straight. The system uses the side space that aluminum channels would otherwise occupy; cable guides and side channels cannot be combined.

Quick Answer

Block up to 80% of rainfall at the fabric. Hold steady in sustained monsoon winds of 25 to 40 km/h, with gusts above 60 km/h. Filter UVA and UVB. Screen out mosquitoes, leaves, and wind-blown dust.

Best For

Best for year-round outdoor use when you want a balcony or patio that stays usable through storms, harsh sun, and everyday outdoor mess, without paying for a full zip-track seal.

Rain performance

Up to 80% of rainfall is blocked at the fabric. The remaining 20% slips through the cable-guide gaps as mist or runs along the weighted bottom bar. If you need near-complete sealing for an outdoor dining room or a TV setup, that is a zip-track system, not cable-guided.

Wind stability

Two 316 stainless steel cables with nylon coating, plus a weighted aluminum bottom bar, hold the fabric tracking straight against monsoon winds. Retract above 80 km/h. We have installed cable-guided systems up to level 35; level 20 and above we always motorize.

UV and heat control

The PVC-coated mesh filters UVA and UVB. Under-canopy temperature on a west-facing balcony typically drops by 10 to 15 degrees C compared to direct sun. Specific UPF and UV-block percentages depend on fabric openness and weave, listed in the fabric spec sheet on quotation.

Insect + debris reduction

The drawn fabric acts as a physical screen against mosquitoes, dust, and wind-blown leaves. Owners report about one less sweep a day, roughly 365 fewer sweeps a year.

Quick Answer

Single cable-guided blinds run up to 6 m wide. Wider openings combine multiple blinds side by side. The system handles openings up to 20 degrees off vertical and installs as high as level 35.

Best For

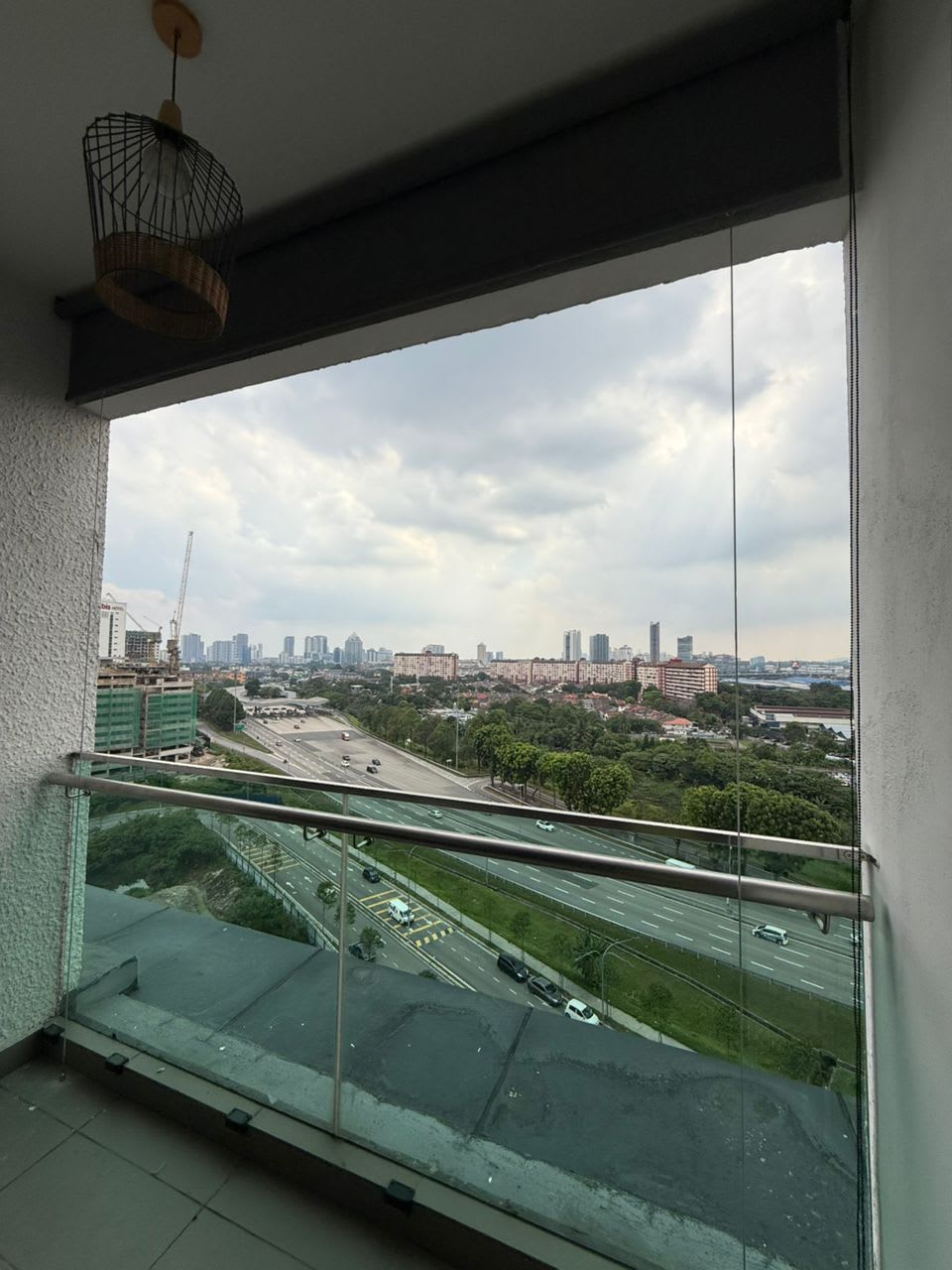

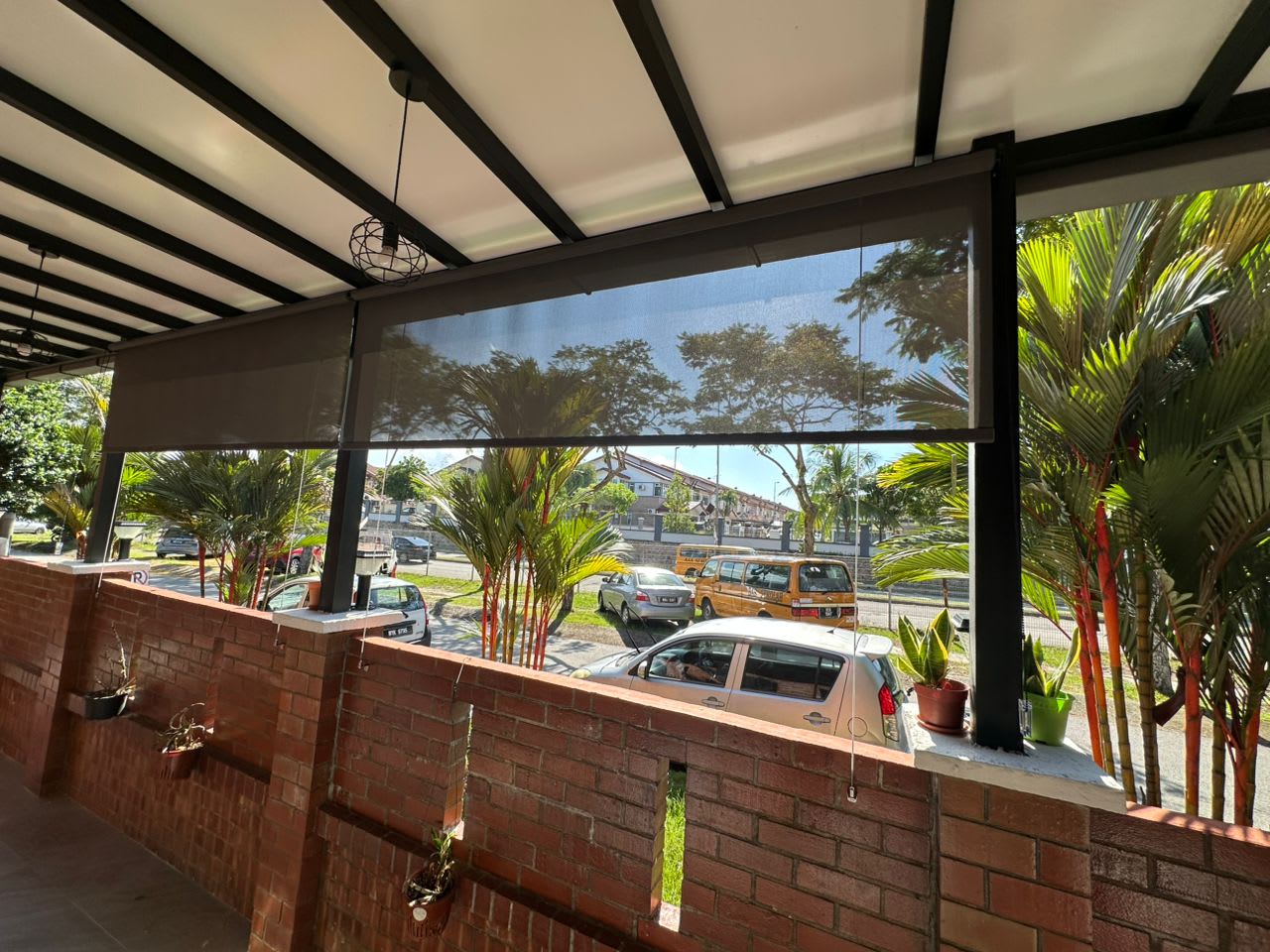

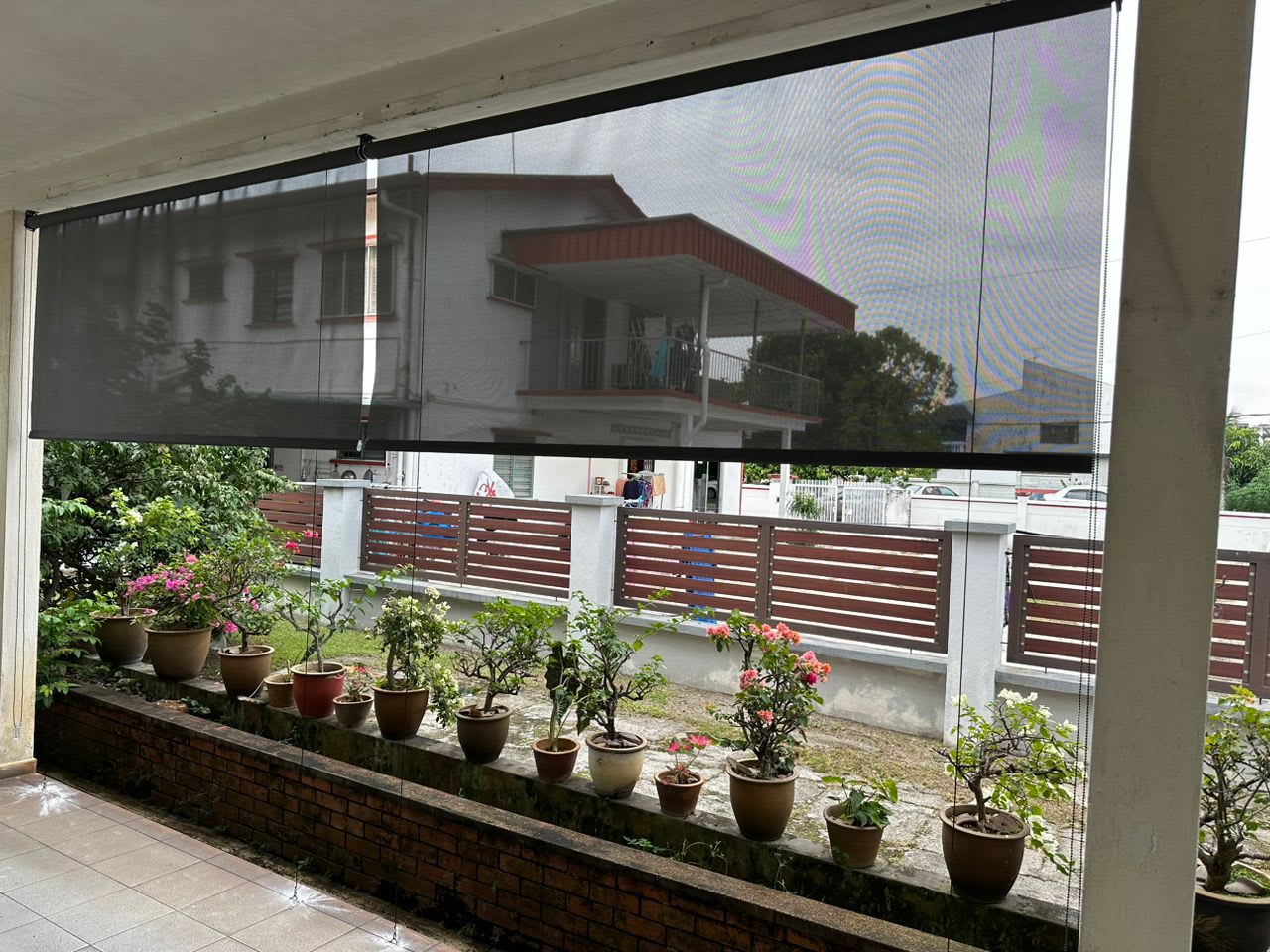

Best for wide condo balconies, landed-property patios, pergola sides, angled outdoor covers, and high-rise balconies where standard outdoor shading sways in monsoon winds.

Maximum width and tube sizing

Single blinds up to 6 m wide, with tube diameter sized to span (typical range 50 mm to 80 mm; heavier tubes on extra-wide spans). Beyond 6 m, we combine blinds side by side with the cables aligned. [Flag F4: verify exact tube SKU matrix against Reference Product entry before restoring specifics.]

Manual and motorized configurations

Manual cord loop is best under 3 m. Above 3 m we motorize, both because the cord becomes a daily workout and because the loop length itself becomes awkward.

Design matching

16+ fabric colors, plus optional cassette headrail for a cleaner finish. Cable-guided blinds are designed to look architectural, not added on.

Quick Answer

Yes. Motorized cable-guided blinds connect to Google Home, Amazon Alexa, and Apple HomeKit through the New Way smart hub. The hub is included on motorized installs at no separate charge.

Best For

Best for buyers who want scheduled open and close routines, sensor-triggered weather automation, and group control across multiple balconies or rooms.

Motorized control options

Wall remote comes standard. WiFi via the New Way hub is an add-on, and so is the optional rain-and-wind sensor that retracts the blind above 80 km/h winds.

Smart home connectivity

Native compatibility with Google Home, Alexa, and Apple HomeKit means you can schedule a 7am open and a 6pm close, or trigger close-all on rain or wind events.

Multi-blind control

Group controls let multiple cable-guided blinds move together, useful on patios with more than one opening or across multiple balconies in a single home.

Quick Answer

316 marine-grade stainless steel cables. PVC-coated polyester mesh rated for 10 to 15 years of tropical use. Motors carry a 5-year warranty and 10,000+ cycle rating. That's roughly 14 years of daily use.

Best For

Best for low-maintenance outdoor living where you want long service life, easy cleaning, and minimal corrosion.

Corrosion resistance

316 marine-grade stainless steel cables resist pitting and rust in humid and coastal sites. 304 stainless typically fails within 18 to 36 months in coastal conditions; we use 316 because we have replaced too many 304 systems for buyers who didn't know to ask.

Everyday cleaning

Wipe with mild soap, water, and a soft cloth. Coastal sites: every two to three weeks. Inland: monthly. Avoid harsh chemicals and abrasive pads.

Outdoor-ready construction

Powder-coated aluminum extrusions, PVC-coated polyester mesh, and stainless cables are matched to tropical sun and rain exposure. The system is not the same as an indoor-rated roller installed outside.

Quick Answer

Cable-guided outdoor blinds carry a 5-year motor warranty. Fabric and hardware coverage are confirmed on the quote. Motorized control removes the hanging cord. That's the standard child-safety upgrade for family homes.

Best For

Best for families and entertainers who want documented motor warranty terms and a clear post-warranty service plan, plus reduced cord use on family balconies.

UV performance documentation

Fabrics can be specified with UPF50+ and more than 98% UV block with test standards stated; best for projects that need clear, defensible sun protection claims.

Safer operation options

Motorized systems remove the hanging cord, which is the standard upgrade for child-safe homes and public-facing spaces.

Warranty clarity

5-year motor warranty is standard. Fabric, hardware, and electronics coverage is confirmed on the quote based on selected components and configuration. We publish post-warranty service pricing on the same quote, so you know year-three and year-seven service costs before you sign.

Authorized Fabricator for Renson, Aqara, Lutron

New Way is the licensed Renson Fixscreen fabricator and installer for Malaysia and Singapore. We have also been a Lutron-approved fabricator since 2022, and we are an Aqara partner.

RensonAqaraLutron

Trust, Reach & Recognition

33 years of shading work

Founded 1993. Pivoted fully to intelligent shading in 2018.

70,000+ shading solutions delivered each year

From an 80,000 sq ft facility in Eco Business Park V, Puncak Alam.

Authorized partnerships

Renson Fixscreen (Belgian, 115-year heritage), Lutron (since 2022), Aqara.

Frequently Asked Questions

Pre-Sales

Cable-guided outdoor blinds use two 316 marine-grade stainless steel cables, one on each side, that run full-height to keep the fabric tracking straight. Standard outdoor roller shades have no guidance, so the bottom bar swings in wind and the fabric gaps at the sides. Zip-track systems lock the fabric into aluminum side channels for a near-complete seal, but they cost more and need a perfectly square opening. Cable-guided sits between the two: steadier than open rollers, more forgiving of structural irregularity than zip-track, and the right tier when your priority is shade, glare reduction, and partial rain blocking rather than full sealing.

Cable-guided outdoor blinds suit most Malaysian condo balconies where the priorities are shade, glare reduction, privacy, and partial rain blocking rather than full sealing. The system handles sustained monsoon winds of 25 to 40 km/h with gusts above 60 km/h, and we have installed cable-guided as high as level 35. Level 20 and above we always specify a motor, because manual cord-pulling at height is impractical. If your balcony faces unprotected afternoon sun or hosts an outdoor dining setup that needs near-complete weather sealing, ask about the RaynStop Zipscreen or Renson Fixscreen tiers instead.

Cable-guided outdoor blinds suit balconies where you want adjustable vertical sun control and on-demand privacy. A fixed awning gives you overhead shade and rain cover but cannot block low afternoon sun or screen sightlines from a neighbor’s balcony. If your balcony already has a roof slab from the floor above (most Klang Valley condos do), an awning duplicates the existing overhead cover, while cable-guided shading addresses the side and front exposures the slab does not. For landed property patios with no overhead structure, a combination of an awning above and cable-guided shading on the sides usually works best.

Choose a manual cord loop if your blind is under 3 m wide. Above 3 m, choose a tubular motor. Above 3 m of fabric weight, the cord-loop operating force becomes a daily workout and the loop length itself becomes awkward to handle. A New Way tubular motor sits inside the roller tube, runs under 40 decibels, and is rated for 10,000+ cycles, which works out to approximately 14 years of daily use. We will not specify a manual cord on a 4 m balcony blind, even if you ask, because we have seen the regret too many times.

Specifications

Single cable-guided blinds run up to 6 m wide. Beyond 6 m, we combine two or three blinds side by side, with the cables aligned so the overall look stays clean. Tube diameter is sized to the span: shorter spans use a lighter tube, wider spans need a heavier tube to keep the fabric flat without dishing. We confirm the right tube during site measurement. The system also handles openings up to 20 degrees off vertical, which covers most pitched balcony covers and angled pergola sides.

Materials

Cable-guided outdoor blinds use a PVC-coated polyester mesh at a 30/70 PVC-to-polyester blend, mounted on a powder-coated aluminum roller tube, with 316 marine-grade stainless steel cables with nylon coating and a weighted aluminum bottom bar. The fabric is rated for tropical UV and humidity and typically lasts 10 to 15 years before noticeable degradation. The 316 stainless cables outlast 304 stainless by roughly two to three times in coastal humidity. We use 316 because we have replaced too many 304 systems for buyers who didn’t know to ask the question.

Performance

Cable-guided outdoor blinds block up to 80% of rainfall in a typical tropical storm, with the remaining 20% slipping through the small gaps at the cable guides as mist or running along the weighted bottom bar. In a Malaysian monsoon at sustained winds of 25 to 40 km/h, that translates to a balcony floor that stays mostly dry for daily use, but a balcony floor you would still mop after a 30-minute downpour. If you need near-complete sealing for an outdoor dining room or a TV setup outside, that is a zip-track system, not cable-guided. We confirm which one fits your balcony during the on-site survey before any deposit.

Smart Integration

Yes. Motorized cable-guided blinds connect to Google Home, Amazon Alexa, and Apple HomeKit through the New Way smart hub, which is included on motorized installs at no separate charge. You can set scheduled open and close times, group multiple blinds, and trigger close-all routines from a rain-and-wind sensor that retracts the blinds automatically above 80 km/h winds. Manual cord-loop blinds cannot be retrofitted to smart control; the motor has to be specified up front.

Warranty

New Way motors carry a 5-year warranty on the motor itself, with motor cycle ratings of 10,000+, approximately 14 years of daily use. Past year five, motor replacement is the standard service: we use Dooya and Somfy tubular motors with named part numbers and stocked parts. We publish post-warranty motor service pricing on the same quote you receive at purchase, so you know what year-three and year-seven service costs before you sign, not after the motor fails. Replacement on a typical balcony blind is a same-day same-tube swap, no site rework.

Buying Journey

Cable-guided outdoor blind installs typically take 3 to 6 weeks from on-site measurement to final fitting, depending on fabric stock and the size of your opening. The quote includes the blind, cables, hardware, fabric, install, and on motorized blinds the New Way smart hub. Separately listed: any electrical work, framework reinforcement, the optional rain-and-wind sensor, the cassette headrail upgrade, and a larger tube on extra-wide spans. We do not bundle extras into the headline price. If anything in the quote looks unclear, ask for the nett price line by line.

Cable-guided outdoor blinds can be self-installed if you are confident with structural mounting and cable tensioning. For self-install orders we ship pre-cut cables and a tensioning gauge, and the online guide walks through the bracket layout. The cable tensioning step is where most amateur installs fail: too loose and the blind sways, too tight and the bottom bar pulls and dishes the fabric. Most New Way customers choose our crew to install. Either option is supported, and the warranty terms are identical between professional install and self install.

Ready to grow your business with premium
roller blinds trusted by Lutron, Aqara & Renson?

Join our dealer network and offer world-class shading solutions backed by authorized fabricators and global support

Get Pricing & Catalog

Sales will call in 1 business day
and arrange physical catalog.

Get Pricing & Catalog

Chat via WhatsApp

Chat with our dealer team
for pricing and availability.
Mon–Sat, 8am – 5pm.

Start WhatsApp Chat

Contact Us Directly

We reply within 1 business day.

Support Hours: Mon–Fri 9:00–18:00, Sat 10:00–14:00 (MYT)
